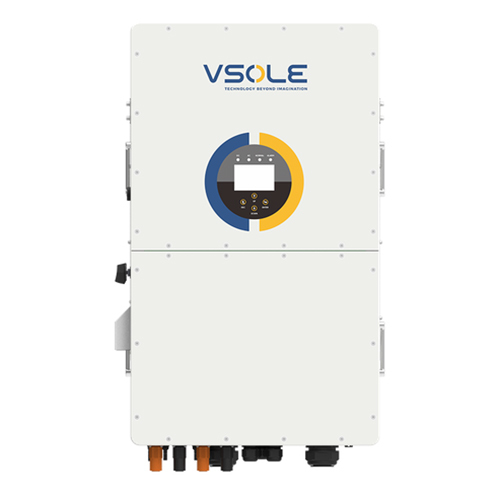

Three phase Hybrid Inverter

Name: Three phase Hybrid Inverter
Brand: VSOLE SOLAR ENERGY PVT LTD
Price: 389100 INR
Availability: InStock

Price 389100 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Three phase Hybrid Inverter Specification

Product Type
Hybrid Inverter

Standard
IEC 62109-1/-2, IEC 62477-1, IEC 62040-1

Rated Voltage
400V AC (Three Phase)

Frequency (MHz)
50/60 Hz

Protection
IP65, Over/Under Voltage, Overcurrent, Short Circuit, Anti-Islanding

Usage
Solar Power Systems, Industrial, Commercial

Size
Large

Color
White with Multi-color Display

Weight
59 kg (approx.)

Dimension (L*W*H)
740 x 520 x 325 mm

Ambient Temperature Range
-25C to +60C

Max PV Input Current
30A per string

MPPT Voltage Range
200V - 950V

Battery Voltage
180V - 800V (High Voltage)

Model Range
VS(HY30T-HY80T)

Max Efficiency
98.2%

No. of MPPTs
2-4 (model dependent)

Display
LCD, LED Indicators

Max PV Input Voltage
1100V

Communication Interface
RS485, CAN, Wi-Fi (optional), Ethernet

Rated Output Power
30.0KW to 80.0KW

Cooling
Smart Fan Cooling

Three phase Hybrid Inverter Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
7 Days

Three phase Hybrid Inverter About

All in 1- Off Grid / On Grid & Hybrid Bi-Directional solution
Automatic Superfast switching time (Changeover Time) 4ms. It can be used as UPS
Battery Management System (BMS) to protect & enhance the battery life (Li-ion/Lead Acid/Li P04)
100% unbalanced output, each phase; Max. output up to 50% rated power (Three Phase)
Colourful touch LCD display with ease of operation & maintenance.
Ideal solution for BLACK-OUT & BROWN-OUTS with GRID Exports with & without Battery.
Programmable supply priority for PV, Battery & Grid.
Inbuilt Zero Export / Reverse Power Limit to grid.
Grid Peak Compensation Mode It can reduce / Limit Maximum Demand (save your penalties)
Intelligent SMART LOAD function for Air Conditioner, Geyser, Grid tie inverter & Home Appliances.
DC couple and AC couple to retrofit existing solar system
Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current upto 240A
48V low voltage battery, transformer isolation design
6 times period for battery charging / discharging
Vector/frequency drop control.
Supports using diesel generator to charge the battery directly. ensuring system energy supply 24*7Hrs
Max. Conversion efficiency of 97.6%; Max. battery charge efficiency of 95.5%
Support storing energy from diesel generator.

Three Phase High Voltage
CAPACITY (KW)	20KW	25KW	30KW	40KW	50KW	60KW	75KW	80KW
MODEL NUMBER	VS-HY20T	VS-HY25T	VS-HY30T	VS-HY40T	VS-HY50T	VS-HY60T	VS-HY75T	VS-HY80T
BATTERY INPUT DATA
Battery Type	Lithium-lon
Battery Voltage Range (V)	160700	160800	1601000
Max. Charging Current (A)	37	50	50+50	75+75
Max. Discharging Current (A)	37	50	50+50	75+75
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-IonBattery	Self-adaption to BMS
PV STRING INPUT DATA
Max. DC Input Power (W)	26000	32500	39000	52000	65000	78000	97500	104000
Rated PV Input Voltage (V)	1000
Start-Up Voltage (V)	180
MPPT Voltage Range (V)	150-850
Full Load DC Voltage Range (V)	350-650	650
PV Input Current (A)	26+26	36+36+36	36+36+36+36	42+42+42+42
Max. PV Isc Current (A)	39+39	55+55+55	55+55+55+559	63+63+63+63
Number of MPPT/Strings per MPPT	2/2+2	3/2+2+2	4/2+2+2+2	4/3+3+3+3
AC OUTPUT DATA
Rated AC Output Power (W)	20000	25000	30000	40000	50000	60000	75000	80000
Max. AC Output Power (W)	22000	27500	33000	44000	55000	60000	75000	80000
AC Output Rated Current (A)	29	36.3	43.5	58	72.5	87	108.7	115.9
Max. AC Output Current (A)	31.9	39.9	47.9	63.8	79.8	87	108.7	115.9
Max. Continuous AC Passthrough Current (A)	80	200
Peak Power (off grid)	1.5 time of rated power, 10 S	1.2 time of rated power, 10 S
Power Factor	0.9 leading to 0.9 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Connection	Three Phase (3L+N+PE)
DC injection current (mA)	<0.5% IN
EFFICIENCY
Max. Efficiency	97.60%
Euro Efficiency	97%
MPPT Efficiency	99.90%
PROTECTION
Integrated	Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection .
Output Over Voltage Protection	DC Type II/AC Type II
GENERAL DATA
Operating Temperature Range (C)	(-45 C60 C)
Cooling	Intelligent Air Cooling
Noise (dB)	45db
Communication with BMS	RS485; CAN
Weight (kg)	31.5	80	97.5
Dimensions (WHD) mm	408W x 678H x 247D	527W x 894H x 294D	606W x 927H x 314D
Installation Style	Wall-mounted
Standard Warranty	5 Years (Extendable upto 10 Years)

High-Performance Three Phase Hybrid Inverter

Designed for solar applications in industrial and commercial environments, the VS(HY30T-HY80T) hybrid inverter series offers powerful performance with a rated output between 30.0KW and 80.0KW. Featuring up to four MPPT channels and a wide MPPT voltage range, this inverter maximizes energy harvest from your photovoltaic system, ensuring optimal efficiency for large-scale operations.

Advanced Cooling and User-Friendly Display

The inverter is equipped with intelligent fan cooling technology to maintain optimum operating temperature, even under heavy load, and in challenging ambient conditions. A comprehensive user interface, including LCD and LED indicators, allows for clear real-time monitoring of system performance and operational status, streamlining maintenance and adjustment processes.

Comprehensive Protection and Communication Features

Engineered with an IP65-rated enclosure and multiple protection features-such as over/under voltage, overcurrent, short circuit, and anti-islanding-the inverter prioritizes safety and reliability. Communication interfaces like RS485, CAN, Ethernet, and optional Wi-Fi support seamless integration into modern energy management and remote monitoring systems.

FAQ's of Hybrid Inverter Three Phase High Voltage VS(HY30T-HY80T) 30.0KW 80.0KW:

Q: How does the Hybrid Inverter VS(HY30T-HY80T) enhance solar power system efficiency?

A: The inverter employs up to four MPPTs (model dependent) and a wide MPPT voltage range (200V-950V) to track maximum solar panel output, ensuring optimal energy conversion with peak efficiency up to 98.2%. This significantly increases overall yield for industrial and commercial solar installations.

Q: What is the recommended usage for the VS(HY30T-HY80T) inverter series?

A: The VS(HY30T-HY80T) series is recommended for large industrial and commercial solar power systems that require robust three-phase power support, high reliability, and compatibility with high voltage batteries (180V-800V). Suitable environments include solar farms, commercial buildings, and factories.

Q: When is smart fan cooling activated in this inverter?

A: Smart fan cooling is automatically activated based on internal temperature sensors that monitor the inverter's operation. This proactive cooling approach ensures stable performance in ambient temperatures ranging from -25C to +60C, maintaining equipment longevity and safety.

Q: Where can this inverter be installed for optimal operation?

A: The VS(HY30T-HY80T) inverters feature an IP65 protection rating, making them suitable for both indoor and outdoor installations. Ideal locations include solar power plants, industrial complexes, and commercial rooftops where environmental exposure is a concern.

Q: What protection mechanisms are available in this inverter series?

A: Safety is ensured with comprehensive protections, including over/under voltage, overcurrent, short circuit, anti-islanding, and an IP65-rated enclosure. These features safeguard the system against electrical faults and environmental factors, providing reliable uninterrupted operation.

Q: How does the communication interface benefit system management?

A: Equipped with RS485, CAN, Ethernet, and optional Wi-Fi, the inverter supports seamless data exchange with energy management and monitoring systems, enabling remote performance tracking, diagnostics, and system adjustments to optimize operation efficiency.
