Solar Grid Tie Inverter

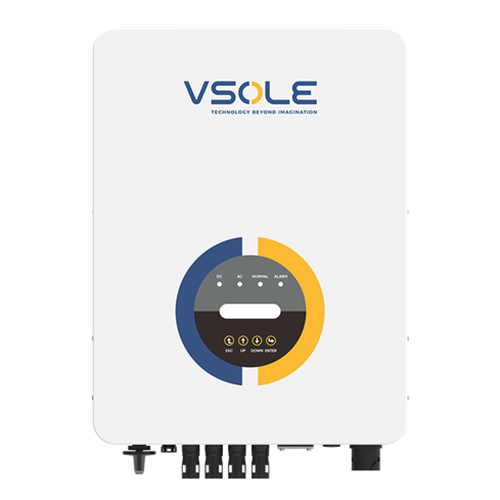

Solar Inverter Manufacturer India

Name: Solar Inverter Manufacturer India
Brand: VSOLE SOLAR ENERGY PVT LTD
Price: 81999 INR
Availability: InStock

Price 81999 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Solar Inverter Manufacturer India Specification

Product Type
Three Phase Grid Tie Inverter

Standard
IEC 62109-1/2, IEC 61727, IEC 61683, IEC 60068

Rated Voltage
400V AC

Frequency (MHz)
50/60 Hz

Protection
Short Circuit, Over Load, Reverse Polarity, Anti-Islanding

Usage
Solar Power System

Size
20KW - 35KW

Color
White

Weight
34 kg

Dimension (L*W*H)
600 x 430 x 230 mm

Power Output
20KW - 35KW

Communication Interface
RS485, WiFi (optional)

Cooling Type
Natural Cooling

Model Number
VS 202T - 352T

Display
LCD Digital Display

Ingress Protection
IP65

Efficiency
98.4%

Phase
Three Phase

Operating Temperature
-25C to +60C

Solar Inverter Manufacturer India Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Solar Inverter Manufacturer India About

Max. efficiency up to 98.9%.
Heavy duty inbuilt DC Isolation switch.
Special external colour with Epoxy Novolac coating for better heat management.
Max. DC input current per string; compatible upto 800WP solar panel.
Type II DC / AC SPD, frequency drop control technology.
Intelligent Fan based cooling on higher capacity models.
Compact & light weight design for an easy Installation.
RS485, remote monitoring (Wi-Fi/GPRS).
Multiple protection functions.
DC overloading upto 20%.

Weather monitoring system (Optional).
DC Isolation Switch for Three phase inverters.
Offline Data Storage facility upto 6 months on demand.(Optional).
Consumption monitoring (Optional).
String Level monitoring.
Anti- PID Function (Optional).
ZED Zero Export Device (Optional).

CAPACITY (KW)	20	25	30	35
MODEL NUMBER	VS-202T	VS-252T	VS-302T	VS-352T
INPUT (DC)
Max.DC input power (KW)	24.0	30.0	36.0	42.0
Max. DC I/P (Vdc)	1000V
Max. MPPT I/P Current (A)	26A+26A	40A
MPPT Short Circuit Current (A)	30A+39A	60A
MPPT Tracking Voltage (Vdc)	180-1000V	200-1000V
Min. Start Voltage (V)	200V
Number of MPPT Tracker	2
Strings per MPPT Tracker	2	2+3 / 3
OUTPUT (AC)
Rated output power (KW)	20	25	30	35
Rated Grid Voltage (V)	415V
Voltage Operating Range (V)	0.85Un 1.1Un
Rated Grid freq. (Hz) / Range	50Hz (+-5%)
Rated output current AC (A )	30.6	38.2	41.7	49
AC Connection	3P + N + PE
THDI (%)	<3%
Output Power factor	0.9 leading to 0.9 lagging
EFFICIENCY
Max. conversion Efficiency (%)	98.5 %	98.6 %
Max. Euro Efficiency (%)	97.5 %	97.8 %
MPPT Efficiency (%)	>99 %
PROTECTION
Anti-Islanding Protection	YES
DC Reverse Polarity Protection	YES
Insulation Resistance Protection	YES
Ground Fault Protection	YES
Output Over Current Protection	YES
Output Short circuit Protection	YES
Output Over Voltage Protection	YES
DC Isolator Switch	YES
Surge Protection	DC: Type II / AC: Type II
GENERAL DATA
Dimensions (WHD) mm	362W527H220D	362W * 577H * 215D
Weight (Kg)	20.0	25.5
Topology	Transformerless
Noise Emission (dB)	45dB
Display	LED with LCD Display
Cooling Method	Intelligent Fan Cooling
Operating ambient Temperature	(-25C +65C)
Operating Humidity	0% 100%
Max. Operating Altitude (m)	2000m (>2000m Derating)
Ingress Protection	IP65
Standard Warranty	10 Years
CONNECTION TYPE
DC connectors	MC-4
Ingress AC plug	IP65 rated plug
Communication Modes	WiFi / GPRS / RS 485 / Local Monitoring
Remote Monitoring	YES

Exceptional Energy Efficiency

With an impressive maximum efficiency of 98.4%, the VS (202T - 352T) inverter ensures optimal power conversion from your solar panels to the grid. This means more of the generated solar energy is harnessed, resulting in lower energy losses and improved overall system performance. Its high-efficiency design is ideal for both commercial and industrial installations, maximizing your return on investment.

Rugged Durability and Protection

Certified with an Ingress Protection rating of IP65, this inverter is built to withstand harsh weather, dust, and water spray, making it suitable for outdoor installation. Advanced safety features, such as short circuit, overload, reverse polarity, and anti-islanding protection, ensure long-term operational reliability and compliance with stringent international standards.

Smart Monitoring and Easy Integration

Equipped with an LCD digital display and supporting both RS485 and optional WiFi communication, the inverter allows easy real-time monitoring and remote diagnostics. Seamless integration with modern solar power systems is facilitated by standard industry protocols and the user-friendly interface, keeping you informed about your system's performance at any moment.

FAQ's of Three Phase Grid Tie Inverter VS (202T - 352T) 20KW - 35KW:

Q: How do I install and integrate the Three Phase Grid Tie Inverter VS (202T - 352T) with my solar power system?

A: Installation should be carried out by a qualified solar technician, ensuring compliance with IEC standards. The inverter is connected between your solar array and the utility grid, using the integrated RS485 communication interface or optional WiFi for monitoring. Its compact size and standard DIN rail mounting make integration straightforward in both industrial and commercial setups.

Q: What are the main benefits of using this inverter model in solar applications?

A: The VS (202T - 352T) offers several advantages, including high efficiency (98.4%), robust IP65 protection, multiple safety functions, and natural cooling for silent operation. Its advanced communication options and LCD display provide convenient monitoring. These features enhance reliability, lifespan, and overall return on investment in solar projects.

Q: When is routine maintenance required for the inverter, and what does it involve?

A: Routine maintenance generally involves visual inspections and periodic checks of system connections, usually every six months. The natural cooling system reduces the need for active maintenance, but it is important to keep the unit free of dust and ensure proper ventilation for optimal performance.

Q: Where can the inverter be installed, and is it suitable for outdoor environments?

A: Thanks to its IP65 ingress protection rating, the VS (202T - 352T) inverter can be safely installed both indoors and outdoors. Its design withstands exposure to dust and water splashes, ensuring durability even in challenging Indian climate conditions.

Q: What communication and monitoring options are available with this inverter?

A: The inverter comes standard with an RS485 communication interface for system monitoring and remote management. Optional WiFi connectivity is also available, enabling wireless access to real-time performance data via compatible applications.

Q: How does the inverter ensure safe operation and prevent system damage?

A: Built-in protections guard against common electrical risks such as short circuit, overload, reverse polarity, and anti-islanding. These features automatically detect and respond to faults, maintaining system safety and compliance with IEC standards.

Q: What is the recommended usage scenario for the VS (202T - 352T) inverter?

A: This three-phase grid tie inverter is best suited for medium to large-scale solar power systems in industrial and commercial environments, where reliable, high-efficiency power conversion and robust protection are essential for daily operation.
