Solar Grid Tie Inverter

Hybrid Inverter Single Phase VS(HY08S-HY10T) 8.0KW-10.0KW

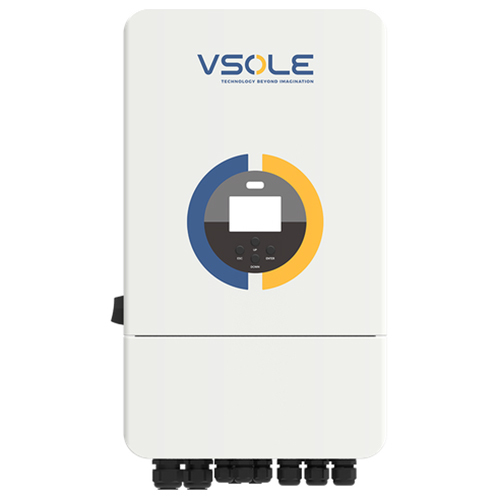

Name: Hybrid Inverter Single Phase VS(HY08S-HY10T) 8.0KW-10.0KW
Brand: VSOLE SOLAR ENERGY PVT LTD
Price: 167600 INR
Availability: InStock

Price 167600 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hybrid Inverter Single Phase VS(HY08S-HY10T) 8.0KW-10.0KW Specification

Product Type
Hybrid Inverter Single Phase

Standard
IEC 62109-1/2, IEC 61727, IEC 62116

Rated Voltage
230 V AC

Frequency (MHz)
50/60 Hz

Protection
Over/Under Voltage, Overload, Short Circuit, Reverse Polarity, Ground Fault

Usage
Residential/Commercial solar power systems

Size
8.0KW - 10.0KW

Color
White

Weight
18 kg

Dimension (L*W*H)
500 x 360 x 155 mm

Cooling
Natural Convection

Max Charger Current
22A

Max Efficiency
97.6%

Display
LCD Screen

Model
HY08S-HY10T

Max PV Input Voltage
600V

Operating Temperature
-25C ~ +60C

Battery Type Supported
Lithium-ion, Lead-acid

MPPT Voltage Range
125-550V

Communication Interface
RS485, WiFi

Phase
Single Phase

Output Power
8.0KW-10.0KW

IP Protection Class
IP65

Hybrid Inverter Single Phase VS(HY08S-HY10T) 8.0KW-10.0KW Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Hybrid Inverter Single Phase VS(HY08S-HY10T) 8.0KW-10.0KW

All in 1- Off Grid / On Grid & Hybrid Bi-Directional solution
Automatic Superfast switching time (Changeover Time) 4ms. It can be used as UPS
Battery Management System (BMS) to protect & enhance the battery life (Li-ion/Lead Acid/Li P04)
100% unbalanced output, each phase; Max. output up to 50% rated power (Three Phase)
Colourful touch LCD display with ease of operation & maintenance.
Ideal solution for BLACK-OUT & BROWN-OUTS with GRID Exports with & without Battery.
Programmable supply priority for PV, Battery & Grid.
Inbuilt Zero Export / Reverse Power Limit to grid.
Grid Peak Compensation Mode It can reduce / Limit Maximum Demand (save your penalties)
Intelligent SMART LOAD function for Air Conditioner, Geyser, Grid tie inverter & Home Appliances.
DC couple and AC couple to retrofit existing solar system
Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current upto 240A
48V low voltage battery, transformer isolation design
6 times period for battery charging / discharging
Vector/frequency drop control.
Supports using diesel generator to charge the battery directly. ensuring system energy supply 24*7Hrs
Max. Conversion efficiency of 97.6%; Max. battery charge efficiency of 95.5%
Support storing energy from diesel generator.

Single Phase Low Voltage
CAPACITY (KW)	8KW 48V	10KW 48V
MODEL NUMBER	VS-HY08S	VS-HY10T
BATTERY INPUT DATA
Battery Type	Lead-acid or Lithium-lon
Battery Voltage Range (V)	40~60
Max. Charging Current (A)	190	220
Max. Discharging Current (A)	190	220
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-IonBattery	Self-adaption to BMS
PV STRING INPUT DATA
Max. DC Input Power (W)	9600	12000
Rated PV Input Voltage (V)	370V
Voltage Operating Range (V)	125~500V
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Full Load DC Voltage Range (V)	300-425
PV Input Current (A)	26+26
Max. PV Isc Current (A)	34+34
Number of MPPT/Strings per MPPT	2/2+2
AC OUTPUT DATA
Rated AC Output Power (W)	8000	10000
Max. AC Output Power (W)	8800	11000
AC Output Rated Current (A)	34.8	43.5
Max. AC Output Current (A)	40	50
Max. Continuous AC Passthrough Current (A)	50
Peak Power (off grid)	2 time of rated power, 10 S
Power Factor	0.9 leading to 0.9 lagging
Output Frequency and Voltage	50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Connection	Single Phase (L+N+PE)
DC injection current (mA)	<0.5%< IN
EFFICIENCY
Max. Efficiency	97.60%
Euro Efficiency	97%
MPPT Efficiency	99.90%
PROTECTION
Integrated	Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection
Output Over Voltage Protection	DC Type II/AC Type III
GENERAL DATA
Operating Temperature Range (C)	(-45C ~ 60C)
Cooling	Intelligent Cooling
Noise (dB)	30db
Communication with BMS	RS485; CAN
Weight (kg)	35.6
Dimensions (WHD) mm	420W x 670H x 223D
Protection Degree	IP65
Installation Style	Wall-mounted
Standard Warranty	5 Years (Extendable upto 10 Years)

Powerful and Adaptable Solar Inverter

Designed for flexibility, this inverter operates seamlessly with both lithium-ion and lead-acid batteries. Its single-phase architecture makes it suitable for a wide array of solar power setups, ensuring that homeowners and businesses can maximize solar energy use efficiently and reliably.

Maximized Efficiency and Protection

With a maximum efficiency of 97.6% and extensive protection features, such as overload, short circuit, reverse polarity, and ground fault detection, the HY08S-HY10T delivers optimized performance and safety, whether in challenging weather conditions or demanding electrical environments.

Smart Monitoring and Easy Installation

The inverter features a clear LCD screen for local control and WiFi/RS485 interfaces for remote monitoring. Its compact dimensions and natural convection cooling simplify installation, and the IP65 protection class ensures durability against dust and water, perfect for both indoor and outdoor placement.

FAQ's of Hybrid Inverter Single Phase VS(HY08S-HY10T) 8.0KW-10.0KW:

Q: How do I choose the correct battery for the HY08S-HY10T hybrid inverter?

A: You can use either lithium-ion or lead-acid batteries with this inverter. When selecting a battery, ensure it meets your energy storage requirements, fits your budget, and is compatible with the inverter's voltage and current specifications for optimal performance.

Q: What are the installation requirements for the HY08S-HY10T in residential or commercial settings?

A: The inverter should be mounted on a stable surface, ideally in a well-ventilated space for optimal natural convection cooling. Thanks to its IP65 protection, it's suitable for both indoor and outdoor installations. Installation must comply with local standards (IEC 62109-1/2, IEC 61727, IEC 62116) and be performed by qualified personnel.

Q: When is the best time to use a hybrid inverter in a solar power system?

A: A hybrid inverter is most beneficial when you wish to maximize solar energy usage, store excess solar power in batteries, or ensure backup power during outages. It efficiently manages energy flow between PV panels, batteries, and the grid-making it ideal for both daytime and nighttime use.

Q: Where can the HY08S-HY10T inverter be used?

A: This inverter is designed for use in both residential and commercial solar installations across India. Its robust construction and operational range (-25C to +60C) allow it to function reliably in diverse regional climates and environmental conditions.

Q: What is the process for connecting the inverter to a solar PV array and batteries?

A: After securing the inverter and checking all local safety standards, connect the PV array and batteries as per the user manual. Use the RS485 or WiFi interface for monitoring. Ensure all wiring is correct-observe polarity and protection measures (over/under voltage, overload, etc.) before starting operation.

Q: How does the HY08S-HY10T benefit users compared to standard inverters?

A: This hybrid inverter provides greater flexibility by integrating battery storage, enabling the use of solar energy even during power outages. Its high efficiency, broad MPPT range, and built-in safety features ensure reliable, uninterrupted power and improved energy savings over time.
