Solar Grid Tie Inverter

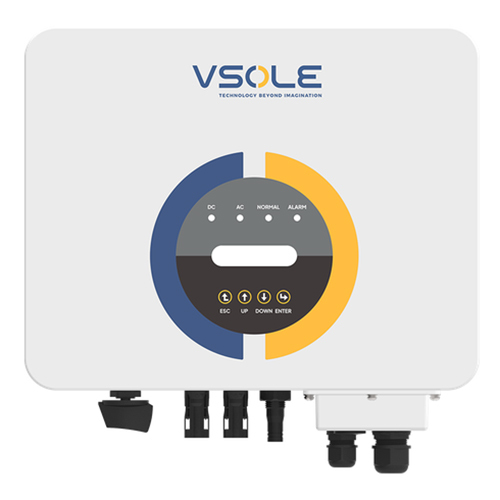

Three Phase Grid Tie Inverter VS (502S - 152T) 4.0KW - 15

Name: Three Phase Grid Tie Inverter VS (502S - 152T) 4.0KW - 15
Brand: VSOLE SOLAR ENERGY PVT LTD
Price: 29999 INR
Availability: InStock

Price 29999 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Three Phase Grid Tie Inverter VS (502S - 152T) 4.0KW - 15 Specification

Product Type
Three Phase Grid Tie Inverter

Standard
IEC 62109-1/2, IEC 61727, IEC 62116

Rated Voltage
380V/400V AC

Frequency (MHz)
50/60 Hz

Protection
IP65 Protection, Over/Under Voltage/Current Protection, Anti-islanding Protection

Usage
Solar Photovoltaic System, Grid Connection

Size
Compact

Color
White

Weight
15 kg

Dimension (L*W*H)
420 x 360 x 135 mm

Maximum AC Output Power
4.0KW - 15KW

Maximum DC Input Voltage
1000V

Maximum Efficiency
98.2%

Display
LCD Digital Display

Model
VS (502S - 152T) 4.0KW - 15

Communication Interface
RS485 / WiFi (optional)

MPPT Voltage Range
200V - 850V

Cooling Method
Natural Cooling

Operating Temperature Range
-25C to +60C

Number of MPPTs
2

Three Phase Grid Tie Inverter VS (502S - 152T) 4.0KW - 15 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Three Phase Grid Tie Inverter VS (502S - 152T) 4.0KW - 15

Max. efficiency up to 98.9%.
Heavy duty inbuilt DC Isolation switch.
Special external colour with Epoxy Novolac coating for better heat management.
Max. DC input current per string; compatible upto 800WP solar panel.
Type II DC / AC SPD, frequency drop control technology.
Intelligent Fan based cooling on higher capacity models.
Compact & light weight design for an easy Installation.
RS485, remote monitoring (Wi-Fi/GPRS).
Multiple protection functions.
DC overloading upto 20%.

Weather monitoring system (Optional).
DC Isolation Switch for Three phase inverters.
Offline Data Storage facility upto 6 months on demand.(Optional).
Consumption monitoring (Optional).
String Level monitoring.
Anti- PID Function (Optional).
ZED – Zero Export Device (Optional).

CAPACITY (KW)	4	5	6	7	8	9	10	12	15
MODEL NUMBER	VS-422S	VS-502S	VS-602S	VS-072T	VS-082T	VS-092T	VS-102T	VS-122T	VS-152T
INPUT (DC)
Max.DC input power (KW)	4.8	6.0	7.2	8.4	9.6	10.8	12.0	14.4	18.0
Max. DC I/P (Vdc)	1000V
Max. MPPT I/P Current (A)	20A								20A + 26A
MPPT Short Circuit Current (A)	30A								30A + 39A
MPPT Tracking Voltage (Vdc)	120 – 1000V							180 – 1000V
Start-Up Voltage (V)	140V						200V
Number of MPPT Tracker	1/2							2
Strings per MPPT Tracker	1								1 + 2
OUTPUT (AC)
Rated output power (KW)	4	5	6	7	8	9	10	12	15
Rated Grid Voltage (V) / Range	415V
Voltage Operating Range (V)	0.85Un – 1.1Un
Rated Grid freq. (Hz) / Range	50Hz/(+-5%)
Rated output current AC (A )	6.7	7.6	9.2	10.7	12.2	13.8	15.3	18.3	22.9
AC Connection	3P + N + PE
THDI (%)	<3%
Output Power factor	0.9 leading to 0.9 lagging
EFFICIENCY
Max. conversion Efficiency (%)	98.3 %
Max. Euro Efficiency (%)	97.5 %
MPPT Efficiency (%)	>99 %
PROTECTION
Anti-Islanding Protection	YES
DC Reverse Polarity Protection	YES
Insulation Resistance Protection	YES
Ground Fault Protection	YES
Output Over Current Protection	YES
Output Short circuit Protection	YES
Output Over Voltage Protection	YES
DC Isolator Switch	YES
Surge Protection	DC: Type II / AC: Type II
GENERAL DATA
Dimensions (WHD) mm	283W463H178D								362W527H220D
Weight (Kg)	11.0								20.0
Topology	Transformerless
Noise Emission (dB)	<45dB
Display	LED with LCD Display
Cooling Method	Natural Cooling								Intelligent Fan Cooling
Operating ambient Temperature	(-25°C ~ +65°C)
Operating Humidity	0% – 100%
Max. Operating Altitude (m)	2000 (>2000m Derating)
Ingress Protection	IP65
Standard Warranty	10 Years
CONNECTION TYPE
DC connectors	MC-4
Ingress AC plug	IP65 rated plug
Communication Modes	WiFi / GPRS / RS 485 / Local Monitoring
Remote Monitoring	YES

Efficient Solar Energy Conversion

This three-phase grid-tied inverter reaches impressive efficiencies of up to 98.2%, supporting powerful solar PV installations by ensuring optimal energy conversion. The dual MPPT trackers efficiently manage varying solar inputs, enhancing overall system performance, and maximizing return on investment for both small and large-scale solar projects.

Advanced Safety & Robust Protection

With IEC standard certifications (62109-1/2, 61727, 62116), IP65 protection, and integrated over/under voltage/current plus anti-islanding protection, this inverter assures secure, stable, and compliant operation. These features protect both the inverter and the connected grid, making it ideal for long-term residential or commercial use in variable Indian climates.

User-Friendly Monitoring and Installation

Equipped with a clear LCD digital display and optional WiFi or RS485 communication, users can conveniently monitor and manage system performance in real time. Its compact design, lightweight structure, and natural cooling method ensure easy installation, minimal maintenance, and silent operation.

FAQ's of Three Phase Grid Tie Inverter VS (502S - 152T) 4.0KW - 15:

Q: How does the VS (502S - 152T) inverter connect to existing solar photovoltaic systems?

A: This inverter is designed for straightforward integration into grid-connected solar PV systems. It takes DC input from your solar panels (up to 1000V), converts it to AC power, and synchronizes with the grid at a rated voltage of 380V/400V AC, supporting both 50Hz and 60Hz frequencies.

Q: What are the main benefits of using a three-phase grid tie inverter over a single-phase model?

A: A three-phase inverter like the VS (502S - 152T) delivers greater efficiency, smoother power delivery, and is better suited to larger loads. It handles higher power levels (up to 15KW), reduces network imbalance, and is ideal for commercial and industrial solar applications.

Q: When should I use the RS485 or WiFi communication interface?

A: Use the RS485 interface for wired, stable, long-distance monitoring and remote management. WiFi is optional for convenient wireless monitoring via apps or web platforms, enabling local or online supervision of the inverter's status and performance.

Q: Where should the inverter be installed for optimal performance and durability?

A: Install the inverter in a well-ventilated, shaded area, protected from direct sunlight and heavy rainfall. Thanks to its IP65 rating, it is suitable for both indoor and outdoor use, but keeping it out of harsh conditions extends its operational life.

Q: What processes ensure the inverter's safe operation during voltage fluctuations or grid outages?

A: The inverter includes over/under voltage/current protection and anti-islanding protection, automatically disconnecting from the grid during unsafe conditions to safeguard both the system and the utility network.

Q: How does the dual MPPT system enhance energy harvesting from solar panels?

A: The dual MPPT (Maximum Power Point Tracking) feature independently tracks and optimizes two separate panel arrays, maximizing energy yield even if panels are partially shaded or oriented differently.
