Send InquiryBest Solar Inverter
Price 17999.0 INR/ Piece
Best Solar Inverter Specification
- Product Type
- Single Phase Grid Tie Inverter
- Standard
- IEC 62109-1, IEC 62109-2
- Rated Voltage
- 230 V AC
- Frequency (MHz)
- 50/60 Hz
- Protection
- Over Voltage, Over Current, Short Circuit, Over Temperature
- Usage
- Residential & Commercial Solar Power Generation
- Size
- Compact
- Color
- White with Colored Accents
- Weight
- 10.5 kg
- Dimension (L*W*H)
- 373 x 320 x 138 mm
- Ingress Protection
- IP65
- Power Range
- 1KW - 3KW
- Cooling Method
- Natural Convection
- Max. Input Current
- 12A
- Display
- LCD/LED
- Max. PV Input Voltage
- 550 V
- Operating Temperature Range
- -25C ~ +60C
- Max. Efficiency
- 97.8%
- Humidity
- 0-100% non-condensing
- Model Range
- VS (101S - 361S)
- MPPT Voltage Range
- 90-500 V
- Communication Interface
- RS485/Wi-Fi
Best Solar Inverter Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
Best Solar Inverter About
- DC overloading upto 10%.
- High DC/AC ratio for more yields.
- Max. DC input current per string; compatible upto 800WP solar panel.
- H bridge & T-type three-level topology & enhanced SPWM (Space Pulse Width Modulation).
- Special external colour with Epoxy Novolac coating for better Heat Management.
- Wide Input Range; Low Voltage start-up of 80V.
- Compact and light weight design for an easy Installation.
- Multiple MPPT Design with IDA Technology (Intelligent Disturbance Algorithm).
- Inbuilt surge protections at both AC and DC side.
- Fan-less natural cooling models.
- RS485, remote monitoring (Wi-Fi/GPRS).
- User friendly Web and Mobile App Monitoring.
- Zero export enabled models (External CT required).
|
CAPACITY (KW) |
1 |
2 |
3 |
3.4 |
3.6 |
|
MODEL NUMBER |
VS-101S |
VS-201S |
VS-301S |
VS-341S |
VS-361S |
|
INPUT (DC) |
|
||||
|
Max.DC input power (KW) |
1.1 |
2.2 |
3.3 |
3.7 |
3.9 |
|
Max. DC I/P (Vdc) |
550V |
||||
|
Max. MPPT I/P Current (A) |
20A |
||||
|
MPPT Short Circuit Current (A) |
30A |
||||
|
MPPT Tracking Voltage (Vdc) |
70-550V |
||||
|
Min. Start Voltage(V) |
80V |
||||
|
Number of MPPT Tracker |
1 |
||||
|
Strings per MPPT Tracker |
1 |
||||
|
OUTPUT (AC) |
|
||||
|
Rated output power (KW) |
1 |
2 |
3 |
3.4 |
3.6 |
|
Rated Grid Voltage (V) |
230V |
||||
|
Voltage Operating Range (V) |
0.85Un 1.1Un |
||||
|
Rated Grid freq. (Hz) / Range |
50Hz ( + 5%) |
||||
|
Rated output current AC (A) |
4.8 |
9.6 |
14.3 |
16.2 |
17.2 |
|
AC Connection |
P + N + PE |
||||
|
THDI (%) |
<3% |
||||
|
Output Power factor |
0.9 leading to 0.9 lagging |
||||
|
EFFICIENCY |
|
||||
|
Max. conversion Efficiency (%) |
97.5 % |
||||
|
Max. Euro Efficiency (%) |
97.3 % |
||||
|
MPPT Efficiency (%) |
>99 % |
||||
|
PROTECTION |
|
||||
|
Anti-Islanding Protection |
YES |
||||
|
DC Reverse Polarity Protection |
YES |
||||
|
Insulation Resistance Protection |
YES |
||||
|
Ground Fault Protection |
YES |
||||
|
Output Over Current Protection |
YES |
||||
|
Output Short circuit Protection |
YES |
||||
|
Output Over Voltage Protection |
YES |
||||
|
DC Isolator Switch |
NO |
||||
|
Surge Protection |
DC: Type III / AC: Type III |
||||
|
GENERAL DATA |
|
||||
|
Dimensions (W*H*D) mm |
280W*310H*184D |
||||
|
Weight (Kg) |
6.35 |
||||
|
Topology |
Transformerless |
||||
|
Noise Emission (dB) |
25dB |
||||
|
Display |
LED with LCD Display |
||||
|
Cooling Method |
Natural Cooling |
||||
|
Operating ambient Temperature |
(-25C +65C) |
||||
|
Operating Humidity |
0% 100% |
||||
|
Max. Operating Altitude (m) |
2000 (>2000 Derating)m |
||||
|
Ingress Protection |
IP65 |
||||
|
Standard Warranty |
10 Years |
||||
|
CONNECTION TYPE |
|
||||
|
DC connectors |
MC-4 |
||||
|
Ingress AC plug |
IP65 rated plug |
||||
|
Communication Modes |
WiFi / GPRS / RS 485 / Local Monitoring |
||||
|
Remote Monitoring |
YES |
Advanced Solar Power Conversion
Designed for performance and durability, the VS (101S - 361S) Series handles a wide input voltage and power range, making it ideal for both small residential setups and larger commercial installations. With its high efficiency and advanced Maximum Power Point Tracking (MPPT), you can maximize your solar yield and energy savings.
Robust Monitoring and Connectivity
Equipped with RS485 and Wi-Fi interfaces, the inverter enables seamless monitoring of your solar system's performance through various platforms. The user-friendly LCD/LED display provides real-time data to help you stay informed and optimize electricity usage. Its compact build and modern design blend well with any installation site.
FAQ's of Single Phase Grid Tie Inverter VS (101S -361S) 1KW-3:
Q: What are the benefits of using the Single Phase Grid Tie Inverter VS (101S - 361S) for solar power generation?
A: This inverter offers high efficiency (up to 97.8%), a wide MPPT voltage range, and reliable protection features, ensuring optimal performance and safety in both residential and commercial solar installations.Q: How is the VS (101S - 361S) inverter installed and monitored?
A: Installation is straightforward due to its compact and lightweight design. Performance monitoring can be done via the integrated LCD/LED display or remotely using RS485 or Wi-Fi communication interfaces, providing flexibility in system management.Q: When should this inverter be selected over other types?
A: Choose the VS (101S - 361S) model when you require a single-phase grid-tie solution with robust protection, natural convection cooling, and high performance for solar power systems ranging from 1KW to 3KW.Q: Where can the Single Phase Grid Tie Inverter be effectively used?
A: It is suitable for both residential rooftops and commercial solar installations across varying climates, thanks to its IP65 ingress protection and broad operating temperature range from -25C to +60C.Q: What safety and protection features does the inverter provide?
A: The inverter safeguards against over voltage, over current, short circuit, and over temperature scenarios. It complies with international safety standards IEC 62109-1 and IEC 62109-2.Q: Which communication methods are supported for remote monitoring and control?
A: The inverter supports both RS485 and Wi-Fi communication methods, enabling users to access performance metrics and system status remotely for improved system management.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Single Phase Grid Tie Inverter Category

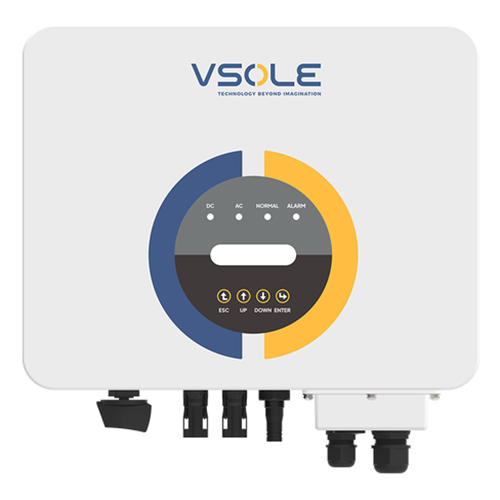

vsole solar Single Phase Grid Tie Inverter 4.2KW-6KW
