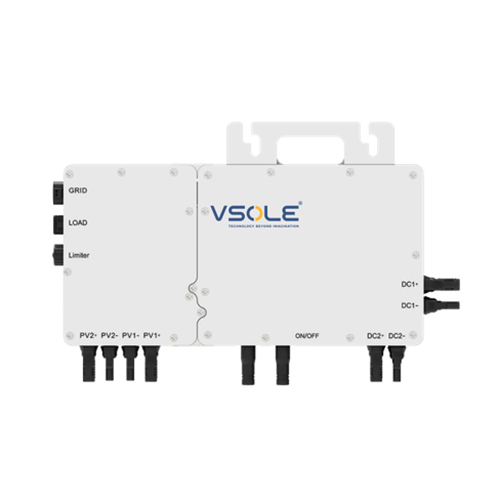

HYBRID MICRO INVERTER 1.2 KW

Name: HYBRID MICRO INVERTER 1.2 KW
Brand: VSOLE SOLAR ENERGY PVT LTD
Price: 13000 INR
Availability: InStock

Price 13000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HYBRID MICRO INVERTER 1.2 KW Specification

Product Type
Hybrid Micro Inverter

Standard
CE, IEC Certified

Rated Voltage
230V AC

Frequency (MHz)
50/60 Hz

Protection
IP67, Over/Under Voltage, Over Temperature, Islanding, Short Circuit

Usage
Solar PV Module Integration, Grid-Tied/Off-Grid Installation

Size
Compact

Color
White

Weight
4.5 kg

Dimension (L*W*H)
295 mm x 200 mm x 41.5 mm

MPPT Voltage Range
22-48V

Communication
Wi-Fi / PLC / ZigBee

Total Harmonic Distortion (THD)
<3%

Operating Temperature
-40C to +65C

Input Voltage Range (DC)
18-60V

Output Current
5.22A

Max DC Input Power
1400W

Maximum Efficiency
96.5%

Rated Output Power
1200W

HYBRID MICRO INVERTER 1.2 KW Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About HYBRID MICRO INVERTER 1.2 KW

IP67-rated for superior protection
Built-in WiFi communication
Supports wireless CT, smart switch, and BMS communication
AC-coupled design for retrofitting existing solar systems
Max charging/discharging current: 25A
Expandable with two independent PV inputs
Operates in both microinverter and storage inverter modes
UPS support with fast 4ms switching

CAPACITY (KW)	1.2
MODEL NO.	VS-MI-HY-122S
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	4060
Max. Charging Current (A)	25
Max. Discharging Current (A)	25
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	2200
Max. PV Input Power (W)	1600
Max. PV Input Voltage (V)	60
Start-up Voltage (V)	25
MPPT Voltage Range (V)	2055
Rated PV Input Voltage (V)	42.5
Max. Operating PV Input Current (A)	18 + 18
Max. Input Short-Circuit Current (A)	27 + 27
No. of MPP Trackers / No. of Strings per MPP Tracker	2 / 1
AC Input / Output Data
Rated AC Input / Output Active Power (W)	1000
Max. AC Input / Output Active Power (W)	1100
Max. AC Input / Output Apparent Power (VA)	1100
Max. AC Input / Output Current (A)	4.8
Max. Continuous AC Passthrough (Grid to Load) (A)	10
Peak Power (Off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input / Output Voltage / Range (V)	230 / 0.85Un 1.1Un
Rated Input / Output Grid Frequency / Range (Hz)	50 / 4555, 60 / 5565
Grid Connection Form	L + N + PE
Total Current Harmonic Distortion (THDi)	< 3% (of nominal power)
DC Injection Current	< 0.5% In
Efficiency
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	> 99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection, Insulation Impedance Detection, DC Component Monitoring, Ground Fault Current Monitoring, Anti-islanding Protection
Surge Protection Level	TYPE II (DC), TYPE II (AC)
General Data
Operating Temperature Range (C)	-40C ~ +65C (45C Derating)
Permissible Ambient Humidity	0 100%
Permissible Altitude (m)	2000m
Noise (dB)	25
Ingress Protection (IP) Rating	IP67
Inverter Topology	Isolated
Over Voltage Category	OVC III (DC), OVC III (AC)
Communication	Wi-Fi, LoRa, Bluetooth
Dimensions (W H D) mm	364.5 183 32.85 (Excluding Connectors and Brackets)
Weight (kg)	4.3
Warranty	10 Years
Type of Cooling	Natural Cooling
STANDARD BIS CERTIFICATION : UNDER PROCESS

Reliable Solar Integration

Engineered for both grid-tied and off-grid applications, the HYBRID MICRO INVERTER 1.2 KW is the ideal solution for residential and small commercial solar installations. Its flexibility and high efficiency ensure optimal power conversion from solar panels while maintaining grid stability and safety.

Advanced Safety and Smart Communication

The inverter's comprehensive protection suite (over/under voltage, over temperature, islanding, short circuit) is complemented by its IP67-rated housing, guarding against harsh environmental conditions. Smart connectivity via Wi-Fi, PLC, and ZigBee allows easy monitoring and integration into modern energy management systems.

FAQ's of HYBRID MICRO INVERTER 1.2 KW:

Q: How does the HYBRID MICRO INVERTER 1.2 KW benefit a solar PV installation?

A: The inverter maximizes energy harvest from solar panels using advanced MPPT technology, achieving up to 96.5% efficiency. Its robust protection mechanisms and compliance with CE and IEC standards ensure reliable and safe operation in diverse weather conditions.

Q: What types of installations can this inverter support?

A: This micro inverter is designed for both grid-tied and off-grid solar systems. It offers flexibility for residential rooftops, commercial building integration, and areas with intermittent grid connectivity.

Q: When is the ideal time to use this inverter during a solar project?

A: It is best integrated during the initial installation phase of a solar PV system, allowing for seamless module-level power optimization and real-time performance monitoring from the start.

Q: Where can the inverter be installed, considering its protection rating?

A: Due to its IP67 rating, the HYBRID MICRO INVERTER 1.2 KW can be installed outdoors or indoors, even in dusty or wet environments, providing installation versatility and durability.

Q: What is the process for monitoring the inverter's performance?

A: Performance can be monitored remotely via Wi-Fi, PLC, or ZigBee connectivity, allowing users to access real-time power output and fault notifications through compatible software or mobile apps.

Q: How does the inverter handle safety issues such as voltage or temperature fluctuations?

A: The device incorporates automatic protections against over/under voltage, over temperature, islanding, and short circuits, ensuring a safe operating environment for both equipment and users.
