All-IN-ONE 4800LV - 5120LV

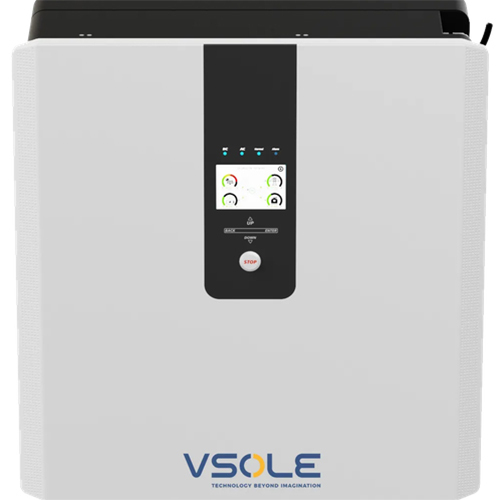

Name: All-IN-ONE 4800LV - 5120LV
Brand: VSOLE SOLAR ENERGY PVT LTD
Price: 171360 INR
Availability: InStock

Price 171360 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

All-IN-ONE 4800LV - 5120LV Specification

Product Type
All-in-One Solar Inverter

Standard
IEC 62109-1/2

Rated Voltage
230V AC

Frequency (MHz)
50/60 Hz

Protection
Overload/Short Circuit/Over Temperature

Usage
Residential & Commercial Solar Installations

Size
Compact

Color
White & Black

Weight
13.5 kg

Dimension (L*W*H)
460 x 395 x 148 mm

Display Type
LCD Touch Screen

Battery Voltage
48V DC

Operating Temperature
-10C to 50C

Input Voltage Range
120-450V DC

Communication Port
RS485/USB/Wi-Fi

Output Waveform
Pure Sine Wave

Efficiency
>93%

Model Name
4800LV / 5120LV

Maximum PV Input Power
6000W

All-IN-ONE 4800LV - 5120LV Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About All-IN-ONE 4800LV - 5120LV

Peak-saving, smart load, AC couple etc. Fast switching time of 4ms, ensuring your energy security
Flat design, wall-mounted, saving installation space, quick & easy installation
Max.16 units in parallel ( 57.6kW/84.8kWh or 80kW/84.8kWh ) Support expansion of Vsole 5.3kWh LV battery, Max. capacity of 164.3kWh
Integrated 3.6kW hybrid inverter and 5.3kWh LFP battery, or 5kW hybrid inverter and 5.3kWh LFP battery, safety and long lifespan
Built-in Intelligent BMS, providing complete protection Natural cooling, IP65, wide temperature range : -10C to 55C

CAPACITY (KW)	0.5	1
AC Technical Specification	VSOA-360H	VSOA-500H
Rated AC Input/Output Active Power ( W )	3600 / 3600	5000 / 5000
Max AC Input/Output Apparent Power ( VA )	3960	5500
Peak Power ( off grid )	2 time of rated power, 10s
AC Output Rated Current ( A )	16	22
Max. AC Current ( A )	18	25
Max Continuous AC Passthrough (grid to load) (A)	35
Rated Input/Output Voltage/Range ( V )	220V / 230,0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range (Hz)	50Hz / 45Hz 55Hz, 60Hz / 55Hz 65Hz
Grid Connection Form	L+N+PE
Power Factor	0.9 leading to 0.9 lagging
Total Harmonic Distortion ( THDi )	< 3% ( of nominal power )
DC injection current ( mA )	< 0.5% ln
DC Technical Specification
Max. PV Access Power ( W )	7200	10000
Max. PV Input Power ( W )	5760	8000
Max. PV Input Voltage ( Vdc )	500
Start Up PV Voltage ( Vdc )	125
MPPT Voltage Range ( Vdc )	150 ~ 425
Full Load MPPT Voltage Range ( Vdc )	300 ~ 425
300 ~ 425	370
Max. Operating PV Input Current ( A )	18+18
Max. PV Input Short-circuit Current ( A )	27+27
Number of MPP Trackers	2
No. of Strings Per MPP Tracker	1 + 1
Battery Chemistry	LiFePO4
Battery Nominal Voltage ( V )	51.2
Battery Energy Configuration ( kWh )	5.32
Max. Charging/Discharging Current ( A )	75	100
Battery Operating Voltage ( V )	44.8 ~ 57.6
Battery Cycle Life	6000 ( @25C2C, 0.5C / 0.5C, 70%EOL )
Other Technical Specification	VSOA-360H	VSOA-500H
Dimensions (WHD) mm	616 191 690 ( Excluding connectors and brackets )
Weight Appr. ( kg )	71
IP Rating of Enclosure	IP65
Permissible Ambient Humidity	(-10 C ~ 55 C)
Operating Temperature Range (C)	0~100%
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II ( DC ), OVC III ( AC )
Type Of Cooling	Natural Cooling
Noise ( dB )	<30
Display	Touch LCD
Monitor Mode	WIFI, Bluetooth
Installation Style	Wall-Mounted, Floor-Mounted
Max. Effciency	97%
Max. charging/discharging Effciency	95.5%
MPPT Effciency	>99%
Warranty	5/10 years (the Warranty Period Depends the Final Installation Site.More Info Please Refer to Warranty Policy)

Exceptional Power Efficiency

Achieve higher energy yields with efficiencies exceeding 93%. The ALL-IN-ONE 4800LV and 5120LV convert more solar energy into usable electricity, reducing losses and optimizing system performance for both homes and businesses.

Versatile Compatibility and Installation

Designed for easy integration, these inverters support a wide input voltage range (120-450V DC) and accommodate a maximum PV input power of 6000W. This flexibility makes them a suitable choice for varied solar panel configurations in diverse environments.

Advanced Monitoring and Control

With RS485, USB, and Wi-Fi connectivity, the inverters offer real-time data monitoring and system control. The user-friendly LCD touch screen further ensures simplified operation and rapid troubleshooting for optimal maintenance.

FAQ's of All-IN-ONE 4800LV - 5120LV:

Q: How does the ALL-IN-ONE 4800LV / 5120LV benefit residential and commercial solar users?

A: These models provide greater than 93% efficiency, maximizing energy harvest and reducing excess power loss. Their pure sine wave output ensures compatibility and safety for both residential and commercial applications.

Q: What types of protection features are included in these inverters?

A: The inverters feature overload, short circuit, and over temperature protections, ensuring system safety and reliable operation under various conditions.

Q: When should I use the ALL-IN-ONE 4800LV / 5120LV solar inverter?

A: These inverters are suitable for any setting requiring a high-efficiency, robust solar energy solution-ideal for both brand-new solar installations and upgrading existing systems in homes or businesses.

Q: Where can these inverters be installed?

A: The 4800LV / 5120LV models are compact and can be installed both in residential and commercial environments. Their operating temperature range of -10C to 50C provides versatility for various climate zones.

Q: What is the process for monitoring or controlling the inverter's operation?

A: You can monitor and control the inverter using its LCD touch screen display or remotely through RS485, USB, or Wi-Fi connections. This allows for real-time tracking and easy management of power generation and system status.

Q: How does the inverter maintain power quality?

A: By outputting a pure sine wave at 230V AC and supporting a frequency of 50/60Hz, these inverters ensure that connected appliances receive clean and stable power, minimizing risk of damage.
