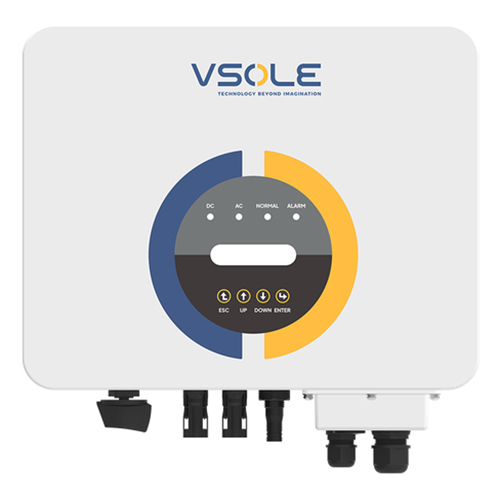

Send InquirySingle Phase Grid Tie Inverter VS (422S -602S) 4.2KW-6KW
Price 23499 INR/ Piece
MOQ : 1 Piece
Single Phase Grid Tie Inverter VS (422S -602S) 4.2KW-6KW Specification
- Product Type
- Single Phase Grid Tie Inverter
- Standard
- IEC 62109-1/-2, IEC 61727, IEC 61683
- Rated Voltage
- 230V AC
- Frequency (MHz)
- 50/60 Hz
- Protection
- IP65, Anti-islanding, AC/DC surge protection, Over/Under voltage protection, Over temperature, Short circuit protection
- Usage
- Residential and commercial solar PV systems
- Size
- 4.2KW, 5KW, 6KW
- Color
- White
- Weight
- 14 kg
- Dimension (L*W*H)
- 380 x 350 x 145 mm
- Max. Input Current per MPPT
- 12.5A
- Number of MPPTs
- 2
- Efficiency
- 98.1%
- Communication Interface
- RS485, WiFi (optional)
- Output Power Factor
- >0.99
- Max. Output Power
- 4.2KW/5KW/6KW
- Max. DC Input Voltage
- 600V
- Operating Temperature Range
- -25C to +60C
- MPPT Voltage Range
- 100V~550V
- Max. Output Current
- 18.5A
Single Phase Grid Tie Inverter VS (422S -602S) 4.2KW-6KW Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
About Single Phase Grid Tie Inverter VS (422S -602S) 4.2KW-6KW
- DC overloading upto 10%.
- High DC/AC ratio for more yields.
- Max. DC input current per string; compatible upto 800WP solar panel.
- H - bridge & T-type three-level topology & enhanced SPWM (Space Pulse Width Modulation).
- Special external colour with Epoxy Novolac coating for better Heat Management.
- Wide Input Range; Low Voltage start-up of 80V.
- Compact and light weight design for an easy Installation.
- Multiple MPPT Design with IDA Technology (Intelligent Disturbance Algorithm).
- Inbuilt surge protections at both AC and DC side.
- Fan-less natural cooling models.
- RS485, remote monitoring (Wi-Fi/GPRS).
- User friendly Web and Mobile App Monitoring.
- Zero export enabled models (External CT required).
High Performance and Versatile Sizing
Choose from 4.2KW, 5KW, and 6KW models to suit different energy needs. Each unit features dual MPPTs for optimized solar energy harvesting and supports wide DC voltage input, ensuring consistent performance even with varying solar panel configurations.
Reliable and Safe Operation
The inverter incorporates comprehensive protection mechanisms, including anti-islanding, over/under voltage, surge protection, and temperature safeguards. Certified under IEC 62109-1/-2, IEC 61727, and IEC 61683 standards, it ensures safety and reliable operation in diverse environments.
Enhanced Monitoring and Communication
The built-in RS485 interface, along with optional WiFi connectivity, allows seamless system monitoring and remote management. These features make it easy to track real-time performance and quickly identify any operational issues, maximizing system uptime.
FAQ's of Single Phase Grid Tie Inverter VS (422S -602S) 4.2KW-6KW:
Q: How does the grid-tie inverter manage solar energy conversion?
A: The VS (422S-602S) grid-tie inverter converts the DC electricity produced by your solar panels into AC power, matching the voltage and frequency of the local grid (230V AC, 50/60 Hz). Its dual MPPTs ensure optimal tracking and conversion, even if solar irradiance fluctuates across panel arrays.Q: What are the benefits of having two MPPT trackers in this inverter?
A: Dual MPPT trackers allow the inverter to independently optimize power extraction from different arrays or panel orientations, improving overall energy harvest and efficiency, especially for installations where solar panels face different directions or are partially shaded.Q: When should I opt for the WiFi communication option?
A: Selecting the optional WiFi module is recommended if you want to remotely monitor your inverter's performance via a smartphone or PC. This provides real-time insights and alerts, facilitating maintenance and system optimization without physical checks.Q: Where can the VS (422S-602S) inverter be installed?
A: This inverter, with its IP65 weatherproof protection and wide operating temperature range (-25C to +60C), can be installed indoors or outdoors. It is suitable for both residential rooftops and small commercial solar PV systems across India.Q: What process is involved in ensuring safety with this inverter?
A: The inverter integrates multiple automatic safety protocols, including over/under voltage, AC/DC surge protection, over temperature, anti-islanding, and short-circuit protections, ensuring system safety and reliability at all times.Q: How is the inverter's efficiency beneficial to energy savings?
A: With a top conversion efficiency of 98.1%, the inverter minimizes power loss during energy conversion, resulting in greater solar energy utilization and long-term cost savings on electricity bills.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Single Phase Grid Tie Inverter Category

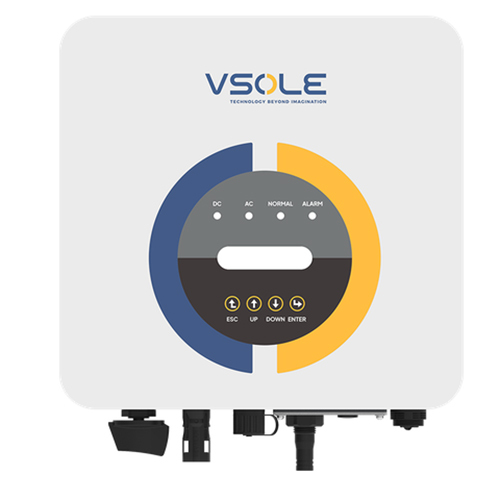

Single Phase Grid Tie Inverter VS (101S -361S) 1KW-3
