On Grid Micro Solar inverter 0.6KW

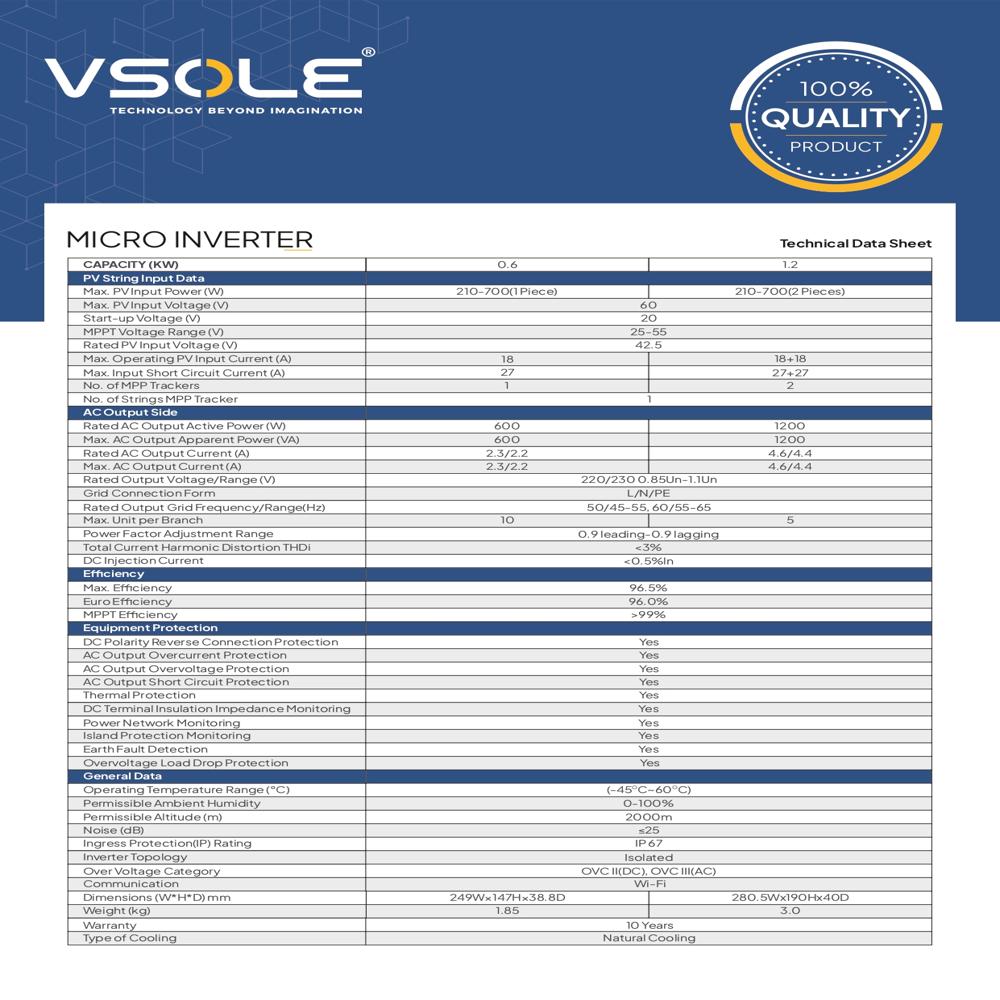

On Grid Micro Solar inverter 0.6KW Specification

Usage & Applications
Rooftop Solar, Commercial Solar

Warranty
1-2 Year

Features
MPPT, WiFi Monitoring, Anti-Islanding

IP Rating
IP65 (Outdoor Rated)

Material
Aluminum Casing, Copper Internals

Conductor
Copper

Product Type
On Grid Solar Inverter

Rated Voltage
220-415 Volt (V)

Protection
Overload, Short Circuit, IP65

Usage
Solar Power Systems

Color
White

On Grid Micro Solar inverter 0.6KW Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Day

Delivery Time
10 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Each solar inverter is packed in high-strength corrugated boxes with foam padding. Inverters are then secured inside wooden crates for additional safety during transit. Moisture absorbent sachets placed inside packaging to prevent corrosion. All packages labeled with FRAGILE HANDLE WITH CARE and THIS SIDE UP instructions. Shrink wrap and strapping used for stability and security. Palletized packaging (if required for bulk shipment).

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO International Organization for Standardization Quality Management System (e.g., ISO 9001:2015) BIS Bureau of Indian Standards Indian safety and quality compliance for electronics SGS Soci t G n rale de Surveillance Product inspection and testing certification NISE National Institute of Solar Energy Performance and reliability testing of solar inverters MSME Ministry of Micro, Small & Medium Enterprises Registered under MSME Udyam scheme IEC International Electrotechnical Commission Compliance with international electrical standards

About On Grid Micro Solar inverter 0.6KW

Reliable, Efficient, and Smart Power Conversion for Solar PV Systems

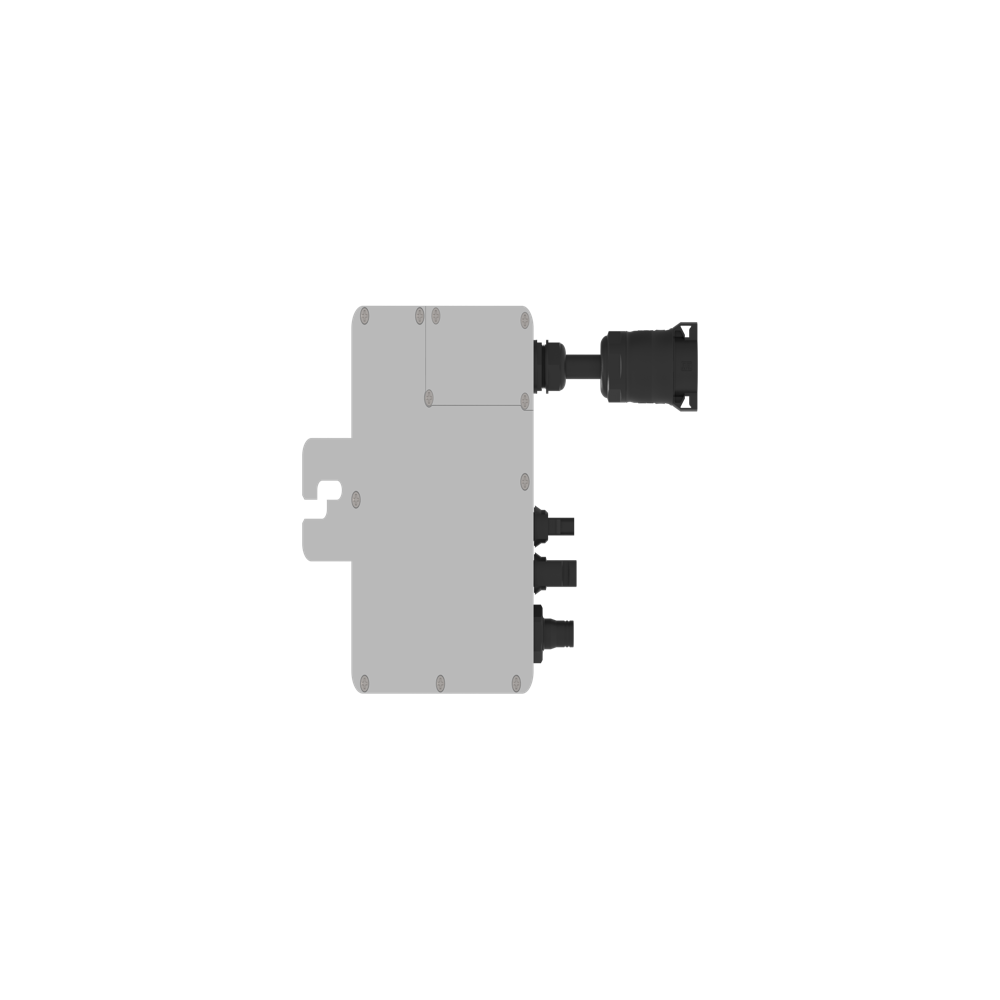

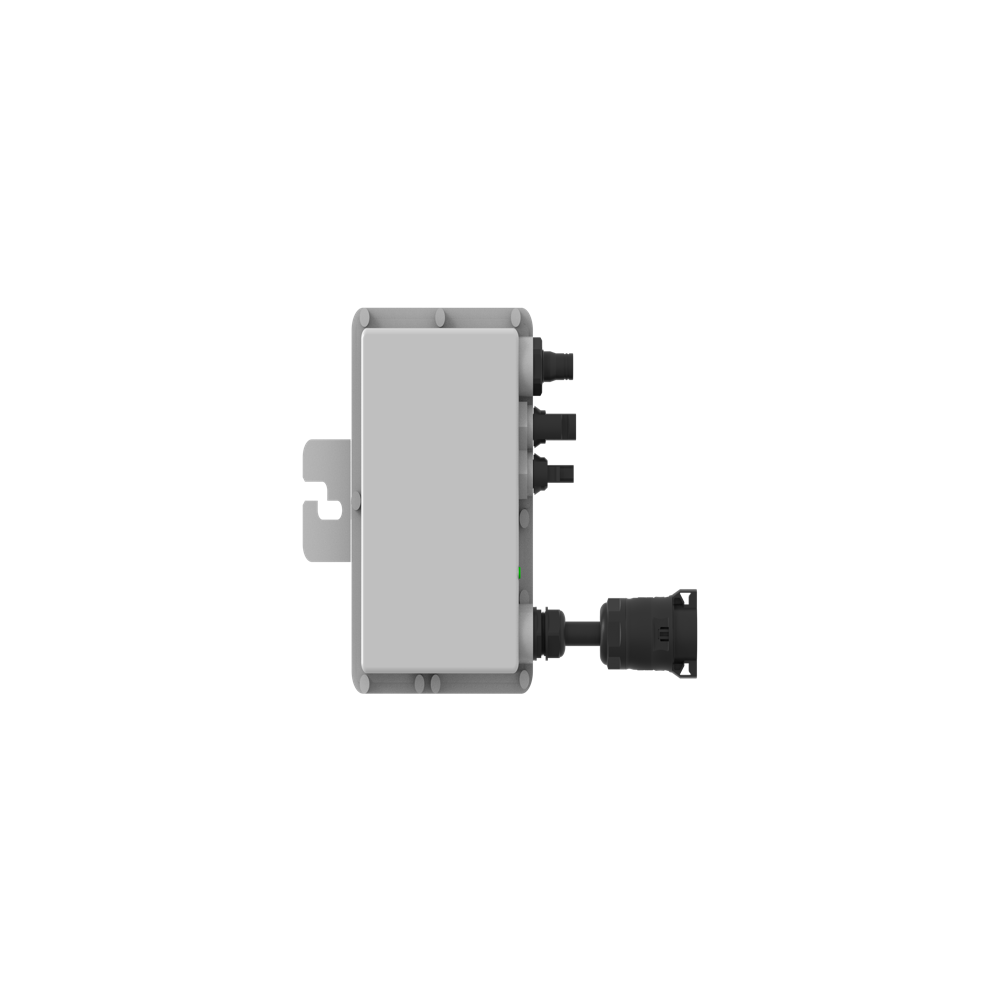

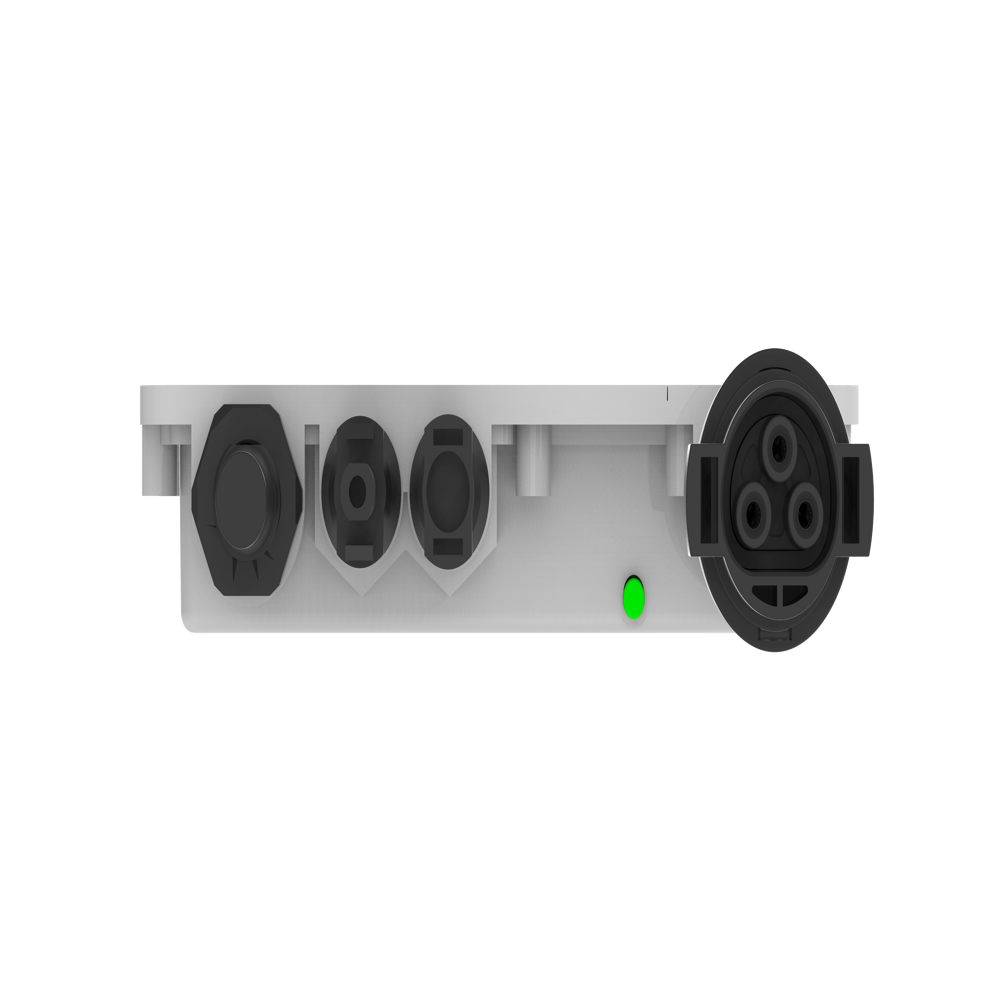

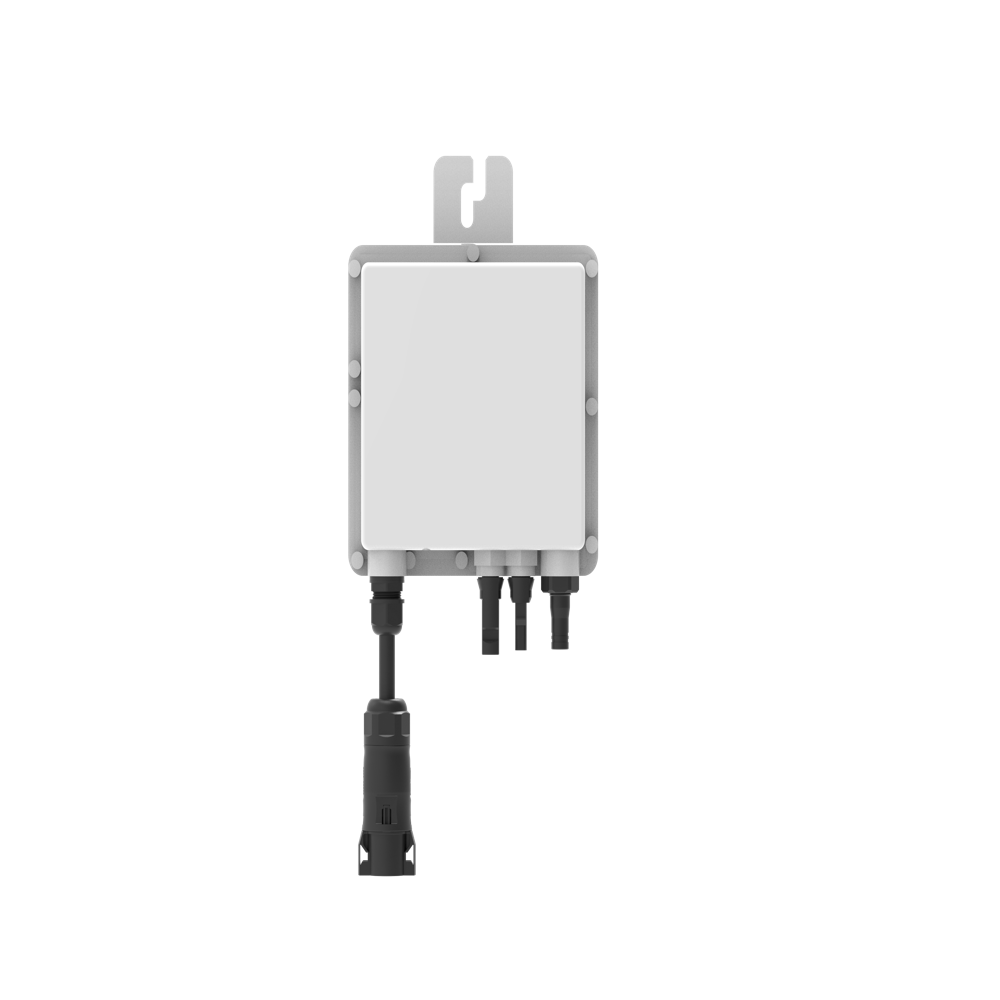

The VSOLE Micro Inverter is a high-performance solution designed for individual solar modules, delivering unmatched energy harvest, advanced safety features, and robust performance under all environmental conditions. Ideal for residential and small commercial rooftop installations, this micro inverter enhances system flexibility, monitoring precision, and energy efficiency.

Key Features:

Dual Capacity Options: Available in 0.6 kW (for 1 panel) and 1.2 kW (for 2 panels) variants, supporting flexible system designs.
Wide MPPT Range: Operates efficiently with input voltages from 25V to 55V, optimizing power output across varied sunlight conditions.
High Efficiency:
- Max Efficiency: Up to 96.5%
- Euro Efficiency: 96.0%
- MPPT Efficiency: Over 99%

AC Output Performance:

Rated Output Power: 600W / 1200W
Rated Output Voltage: 220/230V
Output Current: Up to 4.6A
Frequency Range: 50/4555 Hz, 60/5565 Hz
Power Factor Range: 0.9 (leading to lagging)

Advanced Safety & Protection:

DC & AC Overcurrent, Overvoltage, and Short Circuit Protection
Thermal and Islanding Protection
DC Terminal Insulation Monitoring
Earth Fault Detection
DC Reverse Polarity Protection
Overvoltage Load Drop Protection

Smart Monitoring:

Built-in Wi-Fi Communication
Real-time Grid & Power Network Monitoring

Robust Build for All Conditions:

IP67-rated for dust and water resistance
Wide Operating Temperature: -45C to +60C
Permissible Humidity: 0100%
Altitude Support: Up to 2000m
Low Noise: 25 dB
Natural Cooling No fans required

Compact Design:

0.6 kW Model: 249W x 147H x 38.8D mm, 1.85 kg
1.2 kW Model: 280.5W x 190H x 40D mm, 3.0 kg

Reliability Guaranteed:

Warranty: 10 Years
Inverter Topology: Isolated
Over Voltage Category: OVC II (DC), OVC III (AC)

Perfect Choice for Module-Level Optimization

Whether you're building a small rooftop solar project or upgrading your current system, the VSOLE Micro Inverter ensures maximum output, extended reliability, and intelligent performance monitoring all in a compact, easy-to-install package.
